Low pass filters

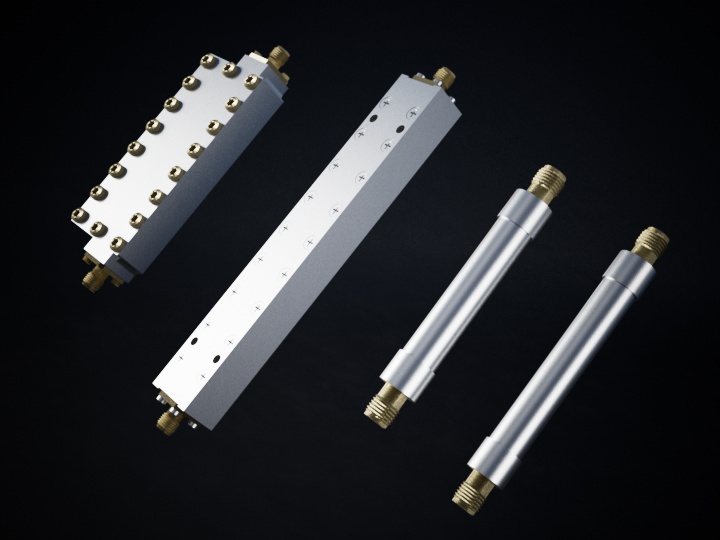

Zenlynx Low pass filters use different technologies such as tubular, suspended stripline and lumped element which can support different frequencies, power levels and rejection requirements.
Low pass filters can be cascaded with other filters improving near band or/and out-of-band rejection.
For lower frequencies, lumped element low pass filters offers high near band rejection and low insertion loss.
Tubular low pass filters offers an excellent solution for suppressing higher order harmonics, low insertion loss and high power handling capability.
For higher frequencies, suspended stripline low pass filters offers high near band rejection and low insertion loss.
Typical applications is test and verification, research and development, wireless communications and military applications.
Our low pass portfolio
| Product number | Frequency | Technology | Rejection | Datasheet |
| ZEN - 500 - 400 - 06 | DC - 824 MHz | Lumped element | 869-1500 MHz > 40 dB ; 1.5-6 GHz > 55 dB | Download |
| ZEN - 500 - 400 - 01 | DC - 1710 MHz | Lumped element | 1805-4100 MHz > 40 dB | Download |
| ZEN - 500 - 400 - 05 | DC - 2.7 GHz | Suspended stripline | 4-6.6 GHz > 52 dB | Download |
| ZEN - 500 - 400 - 07 | DC - 2.7 GHz | Suspended stripline | 3.3-6.3 GHz > 52 dB | Download |

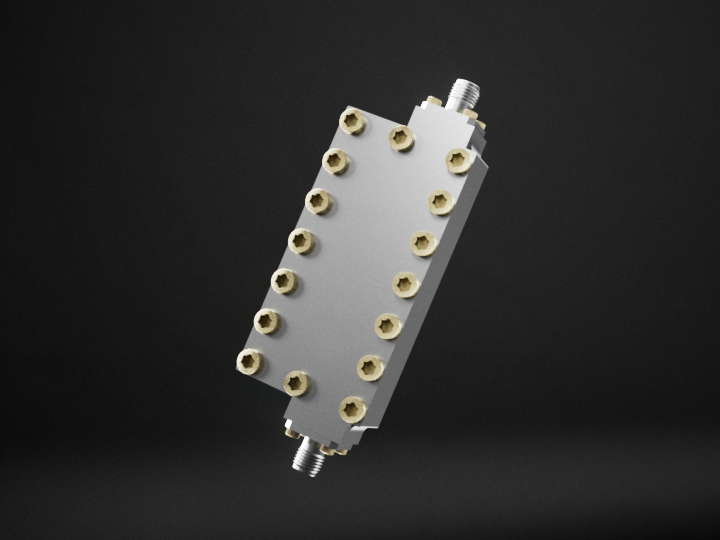

| ZEN - 500 - 400 - 08 | DC - 2.7 GHz | Tubular | 4-4.5 GHz > 65 dB ; 4.5-8.5 GHz > 90 dB ; 8.5-13 GHz > 60 dB | Download |

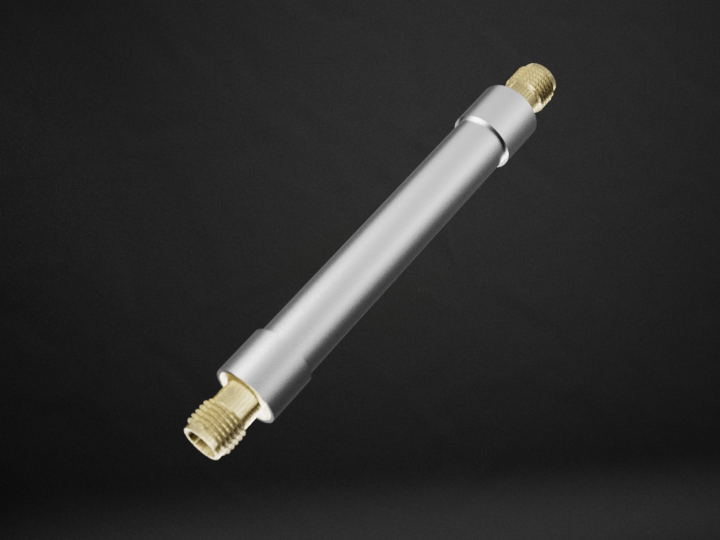

| ZEN - 500 - 400 - 02 | DC - 2.9 GHz | Tubular | 4.8-6.5 GHz > 30 dB ; 6.5-11.5 GHz > 50 dB | Download |
| ZEN - 500 - 400 - 12 | DC - 3 GHz | Suspended stripline | 3.5-8 GHz > 50 dB | Download |
| ZEN - 500 - 400 - 03 | DC - 3.6 GHz | Tubular | 6-8 GHz > 30 dB ; 8-14 GHz > 50 dB | Download |
| ZEN - 500 - 400 - 13 | DC - 4 GHz | Suspended stripline | 4.6-10 GHz > 50 dB | Download |

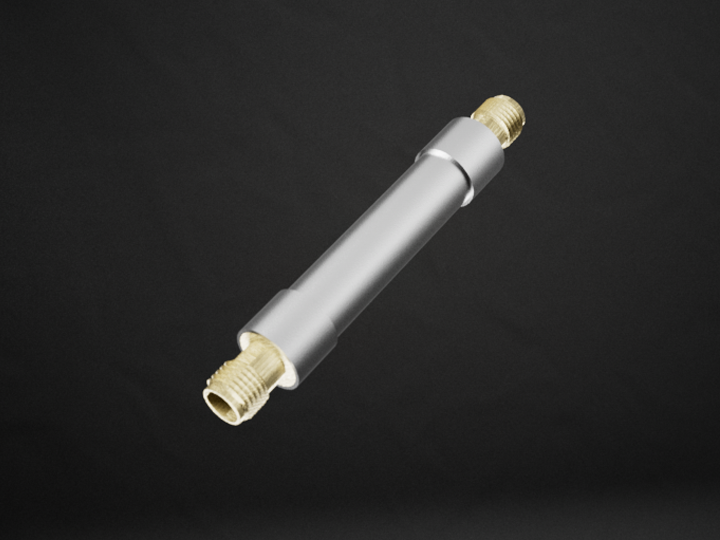

| ZEN - 500 - 400 - 04 | DC - 5.0 GHz | Tubular | 7.5-10 GHz > 30 dB ; 10-17 GHz > 50 dB | Download |
| ZEN - 500 - 400 - 14 | DC - 5 GHz | Suspended stripline | 6-13 GHz > 50 dB | Download |
| ZEN - 500 - 400 - 09 | DC - 6 GHz | Tubular | 10-20 GHz > 50 dB | Download |
| ZEN - 500 - 400 - 10 | DC - 8 GHz | Tubular | 13-20 GHz > 50 dB | Download |
| ZEN - 500 - 400 - 11 | DC - 10 GHz | Tubular | 16.5-26 GHz > 50 dB | Download |
