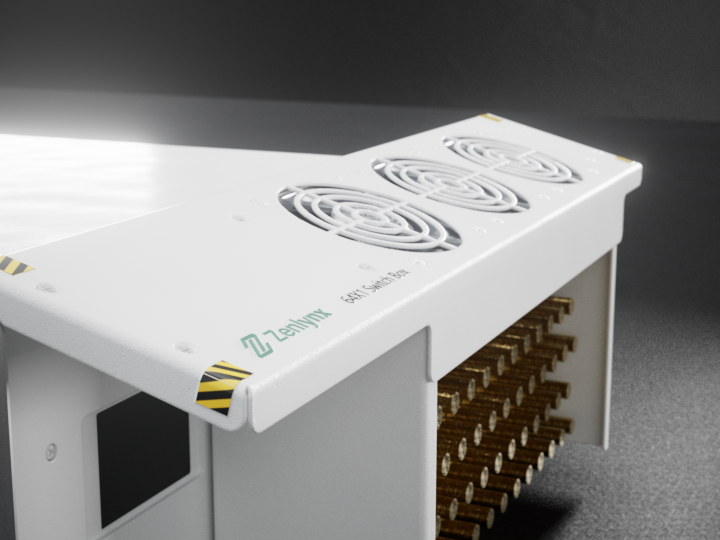

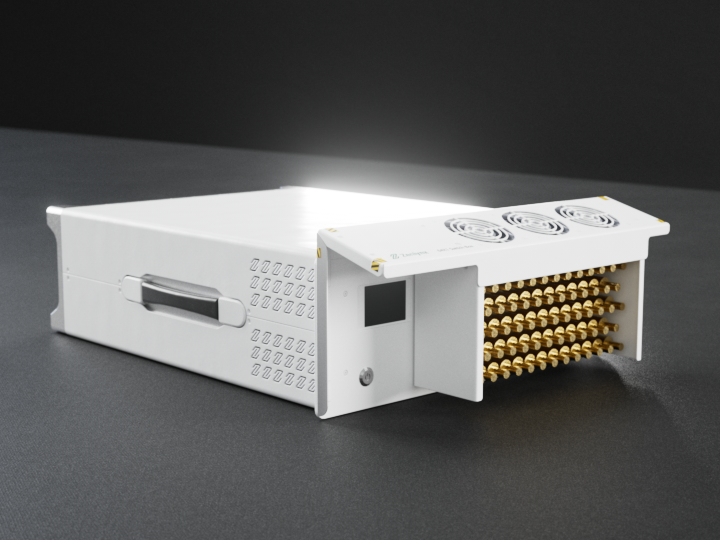

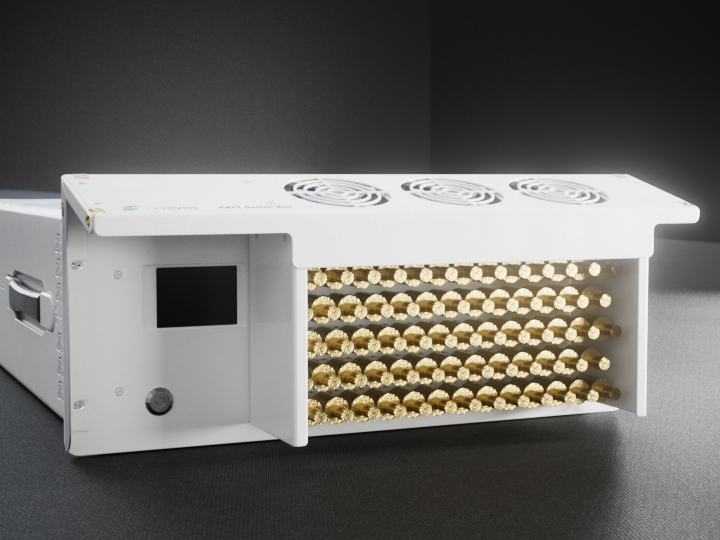

64X1 Switch Box External Fan Module (optional)
This low-noise fan module, tailored for the 64×1 Mechanical Switch Box, enhances testing stability by efficiently reducing front-installed attenuator temperatures. Simple to install and safe to operate, it delivers consistent cooling for optimal test performance.
|
Item |
Description |
|
Rated voltage |
24 VDC |
|
0perating voltage |
14.0 - 27.6 VDC |
|
Input power |
10.8 (Max 15.75) W |
|
Input current |
0.45 (Max 0.69) A |
|
Speed of fan unit |
3400 RPM |
|
Max Air flow (inlet) |
3840 m³/min |
|
Acoustical noise (AVG) |
44 dB-A |
|
Over current protection |
Available |
|
Operating temperature |
-10 to +45 ℃ |
|
Storage temperature |
-40 to +75 ℃ |
|
Operating humidity |
5 to 90% RH |
|
Storage humidity |
5 to 95% RH |
